Efficient Storage and Management of Large-Scale Audit Logs (OVEN)

3. Minimalistic Functionality Focused on Audit Logs:

• Features are limited to those essential for the immutable nature of audit logs.
• Audit logs are not modified after storage and do not require explicit deletion.
  • The solution emphasizes on storage and retrieval functionality only.
• Logs are stored in chronological order and can be queried only as lists within specific time ranges.

Detailed Explanation

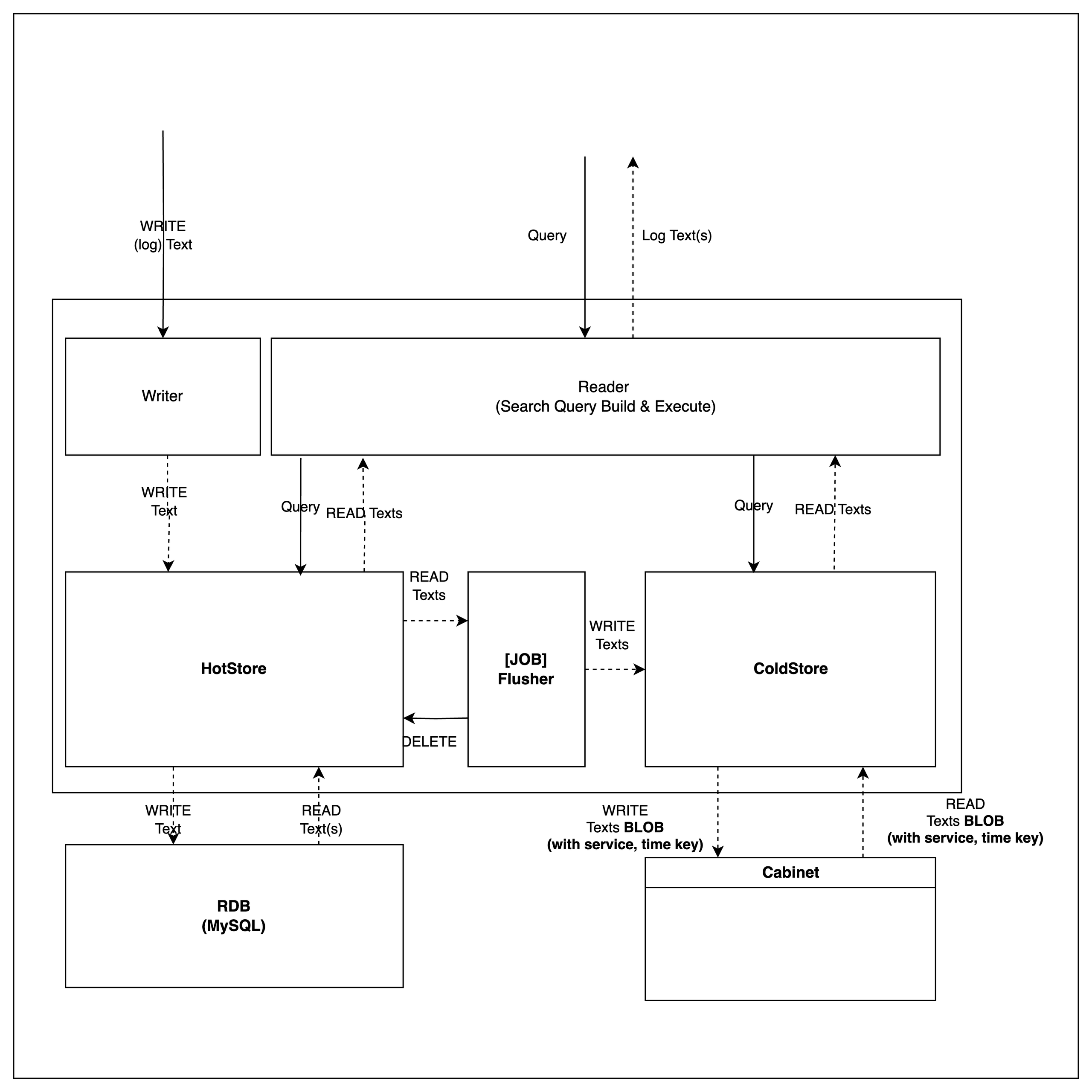

Diary Overview

Core Features for Audit Log Management

Audit logs are immutable after being stored and do not require explicit deletion. Therefore, the system provides functionality for storage and retrieval only.

• Ingestion (WRITE)

  • Logs are initially stored in a high-performance HotStore.
  • After a specific period, logs are aggregated and transferred to a ColdStore for long-term storage.

• Retrieval (READ)

  • Logs can be queried based on time ranges.
  • The retrieval process is abstracted, ensuring consistent querying across internal storage layers.

Efficient Storage Using Blob Storage

Logs moved to ColdStore are stored in Blob format, integrated with object storage solutions like S3. This ensures:

• WORM (Write Once Read Many) compliance for secure, immutable log storage.
• Efficient storage and retrieval without post-ingestion modifications.

Partitioning for Querying and Integration

For audit logs, the log group name and chronological time information are the most essential details for retrieving audit logs.

• To optimize retrieval and external integration, a path-based partitioning system—commonly used for large-scale log data storage and querying—has been implemented.

  • collection=${COLLECTION}/date=${DATE}{HOUR}.gz
    • Log group name
      • ${COLLECTION}
    • Time
      • ${DATE}: Date of log storage.
      • ${HOUR}: Hour of log storage.
  • Example
    • collection test-log
      • Logs from 2024-01-01T19:00:00 to 2024-01-02T01:00:00 (UTC) are stored as:

  Collection	Date	Hour
  collection=test-log/	date=2024-01-02/	01.gz
  		02.gz
  	date=2024-01-01/	23.gz
  		22.gz
  		21.gz
  		20.gz
  		19.gz




  The path-based partitioning method above enables efficient querying of log data in external OLAP storage.

  • The following example demonstrates how to query and analyze Diary logs stored in S3 directly using Athena.

  Athena Integration and Query Example

  • Example: Creating a Table for Diary Logs Stored in S3 Using Athena:

  CREATE EXTERNAL TABLE test_log (
      `record_uuid` STRING,
      `created_at` STRING,
      `data` STRUCT<
          msg: STRING,
          time: STRING,
          level: STRING,
          request_id: STRING,
          operation_id: STRING
      >
  )
  PARTITIONED BY (
      `date_created` STRING
  )
  ROW FORMAT SERDE 'org.openx.data.jsonserde.JsonSerDe'
  STORED AS INPUTFORMAT 'org.apache.hadoop.mapred.TextInputFormat'
      OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
  LOCATION 's3://${S3_BUCKET_ROOT_PATH}/collection=test-log/'
  TBLPROPERTIES (
      'classification' = 'json',
      'compressionType' = 'gzip',
      'projection.enabled' = 'true',
      'projection.date_created.type' = 'date',
      'projection.date_created.format' = 'yyyy-MM-dd',
      'projection.date_created.interval' = '1',
      'projection.date_created.interval.unit' = 'DAYS',
      'projection.date_created.range' = '2024-12-01, NOW',
      'storage.location.template' = 's3://${S3_BUCKET_ROOT_PATH}/collection=test-log/date=${date_created}/'
  );



  • Example: Creating a Table and Running an SQL Query

  SELECT date_created, data.level, count(*)
  FROM test_log
  GROUP BY date_created, data.level

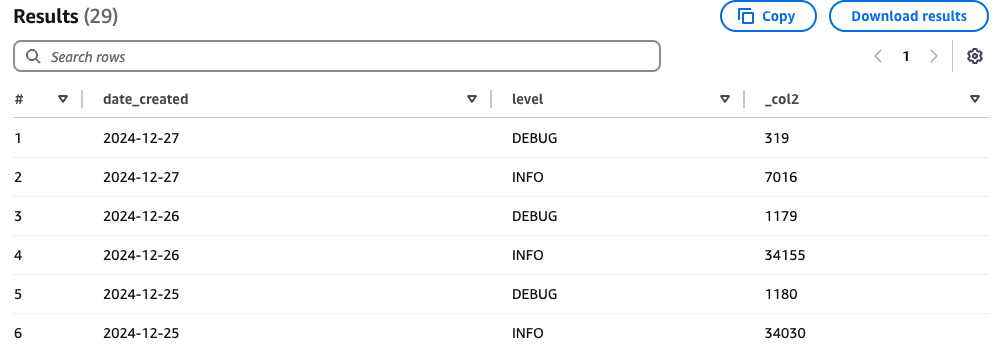

  ORDER BY date_created, data.level;









  Bloom Filter for Internal Query Performance

  Efficient filtering is essential to exclude log data outside the target time range during queries.

  • Large volumes of log data are stored in Blob format in ColdStore on an hourly basis. Querying Blobs that do not meet filtering criteria is inefficient and impacts performance.
    • To address this, a Bloom Filter is generated for each hourly Blob. This allows the system to skip Blobs that do not satisfy the filtering conditions.
  • The Bloom Filter probabilistically allow false positives but guarantee no false negatives.
    • This ensures that non-existent Blobs are confidently skipped, while false-positive Blobs are queried and filtered out during subsequent processing.

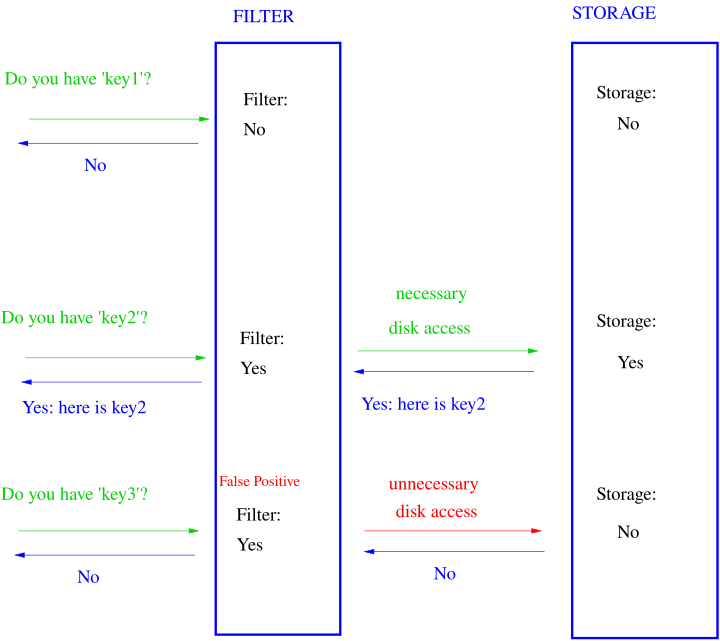

  Performance improvement by skipping unnecessary access using Bloom Filter and an example of false positives – Source: https://en.wikipedia.org/wiki/Bloom_filter




  Conclusion and Expected Benefits

  The new QueryPie audit log module, OVEN, is designed to address the following two key challenges in existing audit log storage and management systems:

  • Efficient Management of Large-Scale Logs
  • Streamlined External Integrations

  OVEN seamlessly integrates with large-scale storage solutions like S3, offering a consistent interface for both storage and retrieval. This design enhances developer convenience by simplifying operations and minimizing complexity.

  Furthermore, OVEN's architecture is optimized for external integrations, enabling instant connectivity with OLAP storage solutions such as Athena and Hive. This ensures effortless handling of large-scale data analysis tasks and improves overall operational efficiency.







  Compared to traditional audit log storage management, OVEN provides the following advantages:

  1. Cost Savings
  • By leveraging AWS S3 for Blob storage, OVEN enables economical management of large-scale data.
  2. Simplified Development for Log Ingestion and Retrieval
  • OVEN minimizes development and operational complexity by focusing solely on essential features for storing and retrieving audit logs.
  • Internal logs stored in both HotStore and ColdStore are fully managed within OVEN, so developers do not need to handle underlying storage details.
  3. Scalability and Compatibility
  • OVEN’s standardized data structure ensures seamless integration with tools like Athena and Hive, simplifying large-scale data analysis.
  • Its design supports flexible integration with various analytics and visualization tools, making it adaptable to diverse use cases.

  Future Plans

  Currently, OVEN provides official support for S3 and S3-compatible storage solutions, including MinIO. Looking ahead, the system aims to expand compatibility by integrating with additional large-scale storage solutions.

  S3-Compatible Storage Support

  • AWS S3 (Officially supported)

  • MinIO (Officially supported)

  • Google Cloud Storage (Under Testing)

  Planned Support for S3-Non-Compatible Storage

  • Azure Blob Storage
  • Ceph
  • Swift

  To enhance usability, OVEN will offer comprehensive guidelines and examples for external integration. These resources will simplify connections with various analytics and visualization tools.

  External Integration Guide and Examples

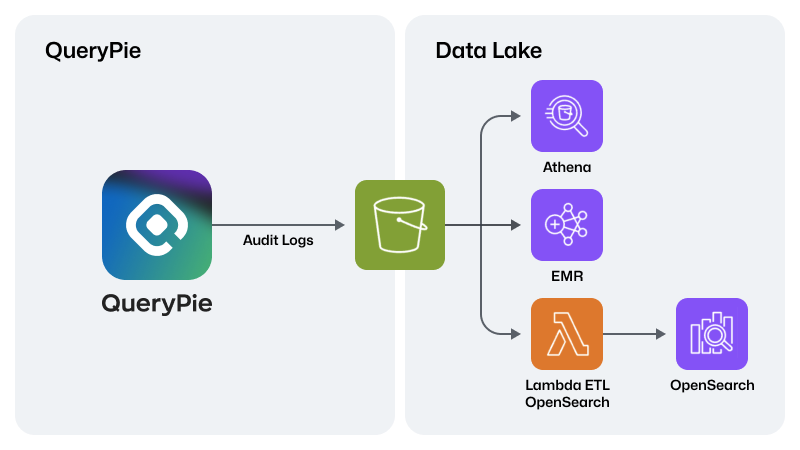

  1. Real-Time Data Visualization Integration: Example: Integration with OpenSearch through Lambda for real-time data visualization, using Kibana as the visualization layer.
  2. Data Warehouse ETL Guide: Guide for creating a data analysis pipeline with Athena and EMR (Spark) for efficient Data Warehouse ETL operations.
